IAME KA 100 Intake Parts

Shop here for the top selection of IAME KA100 Intake components. Select from a variety of components, from carburetor reeds, to air filters, airboxes, intake gaskets, and more!

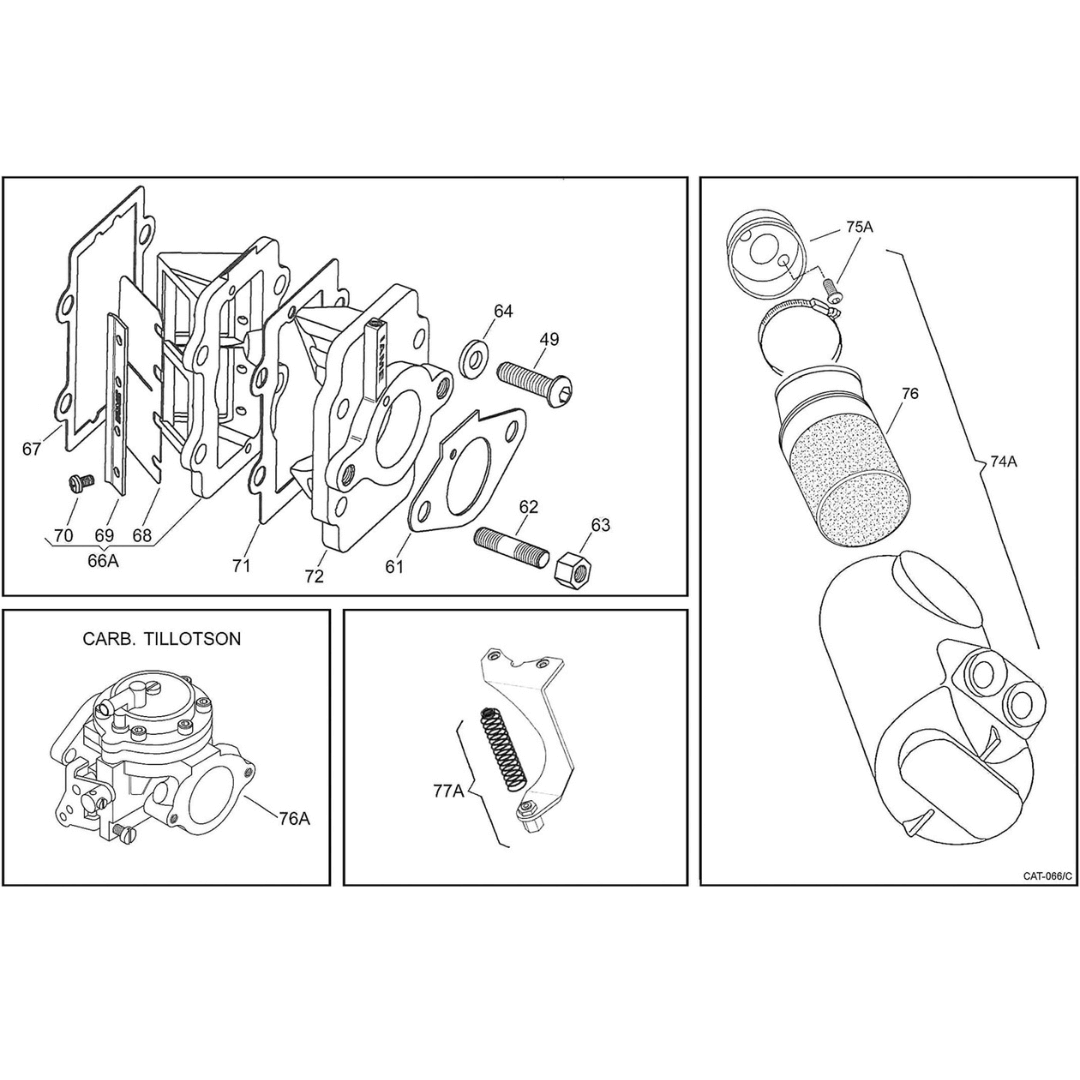

Each component is outlined in the parts diagram, select the components necessary to keep your KA100 engine running well!

IAME-KA100-Airbox-Intake

IAG-90000W-Intake-inlet-silencer-rain-cover
KA 100 Airbox Cover (Rain)
$83
View
10751-INTAKE-Intake-rubber-connector-with-no-foam-filter-for-rain-use
Rubber Connector - Rain Boot Connector
$60
View
00045-K-INTAKE-Intake-kit-of-20-socket-h-screws-m-6-x-25
049 - KA 100 Screw Kit M6 (Intake Manifold Screws)
$8
View
10360-B-Intake-carburetor-gasket
061-KA 100 Carburetor Gasket
$6
View
10525-Intake-fix-carb-studbolt-6-x-25
062 - KA 100 Intake Stud (Reed Cage Assembly)
$8
View
0351-K-Intake-20-hexagonal-nuts-kit-m-6
063 - KA 100 Hex Nut Kit - M6 (Reed Cage Nut)
$6
View
00302-K-INTAKE-Intake-kit-20-washer-m-6
064 - KA 100 Washer Kit - M6 (Reed Cage Washer)
$4
View
X3011840-RC-Intake-fiberglass-reed-petal-x-30
066A - KA 100 Reed Cage Assembly
$148
View
X30125810A-INTAKE-Intake-reed-cage-gasket
067 - KA 100 Reed Cage Gasket
$8
View
X3011840-INTAKE-Intake-fiberglass-reed-petal-x-30
068 - KA 100 Reed Petals
$27
View
F-11845A-INTAKE-Intake-reed-clips
069 - KA 100 Reed Clips
$6
View
10380-K-Intake-kit-20-screws-1-2-cr-head-3-x-5
070 - KA 100 Reed Cage Screws (Kit)
$56
View
X30125815A-Intake-conveyor-manifold-28-m-m
072 - KA 100 Intake Manifold
$116
View
IAG-90000G-Intake-inlet-silencer-socorem-w-manifold-filter
074A - KA 100 Airbox Kit (w/Filter)
$142
View
IAG-90000-Intake-airbox-w-no-filter-ka
074 - KA 100 Airbox
$80
View
TI-HW-33A-INTAKE-Intake-ka-100-carburetor-hw-33-a
076A - KA 100 Carburetor (HW-33A)
$451
View
B-35521-Intake-ka-100-carburetor-return-spring-kit
77A - KA 100 Carburetor Return Spring Kit
$9
View
X3011830R-C-INTAKE-Intake-fiberglass-reed-block-assy-w-f-glass-reeds
066A - Fiberglass Reed Block Assy W/Fiber glass Reeds
$134
View
IAG-50200-INTAKE-Intake-accel-cable-return-spring
77A - ACCEL. CABLE RETURN SPRING
$4
View
