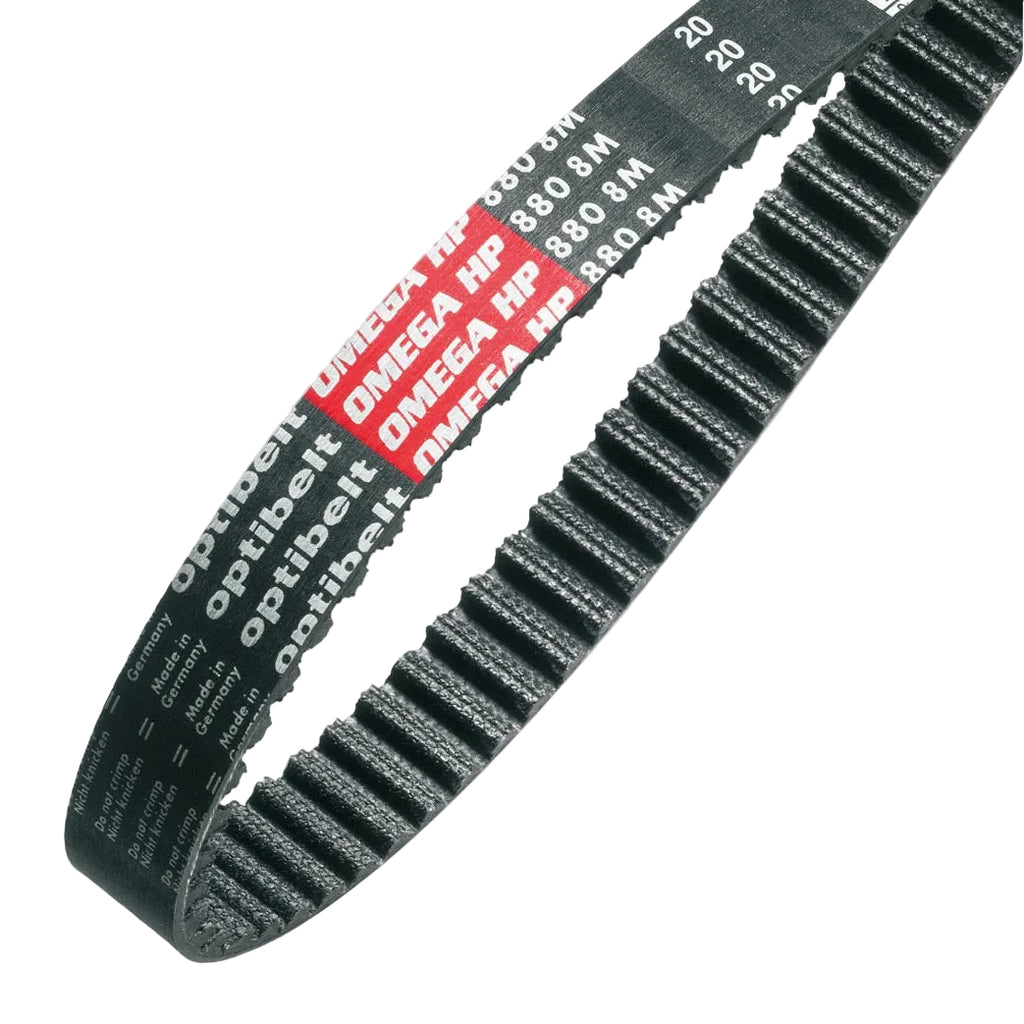

- Belt Drive System belts (8mm pitch) by Pfeifer Industries.
- Ideal for belt drive systems on go karts.
- Belts are 20mm in width, and sold in various lengths.
- These belts are designed for 8mm pitch belt drive systems.
- Various belt length options available:
- 600 - 1200mm
- Additional lengths between 288mm - 3280mm length are available upon special request to pointkarting@gmail.com
- Note: The 860mm is a special-order belt length, and delays may be involved in obtaining this belt.
- For most cadet karts, a belt length of 880mm - 920mm is suggested.
- Most cadet karts seem to perform well with an 880mm belt. OTK (Tony Kart, FA, Kosmic etc) perform well at times with a 920mm belt).
- For most full-size chassis, a belt length of 980-1020mm is suggested.
A Note on Belt Sizing
If you are unclear on the correct size belt you have, you can try:
- Example: Let's say you know you need a 8mm x 20mm belt like this, with 135 teeth on it. If you multiply 8mm pitch x 135 teeth, your belt length is 1,080mm. This is a great way to work with some information even if you don't have all you need.
- Inversely, if you know the belt pitch and the length, you then know the amount of teeth on the belt!
If you do not see a belt listed here at a length you need, give us a call. We can likely special order it for you!
