Meet the Margay Brava 206! Designed and manufactured in St. Louis, Missouri, the Brava is the latest and greatest chassis designed for Briggs LO206 competition.
Available as a rolling chassis, a complete kit, or as a fully assembled and ready to race kart, the Brava 206 is a perfect option for drivers looking to enter the 206 class on an easy to drive and fast kart package.
Fully adjustable out of the box, the Brava works great in all track conditions!
Options
- Rolling chassis
- Kit package, rolling chassis, decal kit, engine, tires, seat (uninstalled)

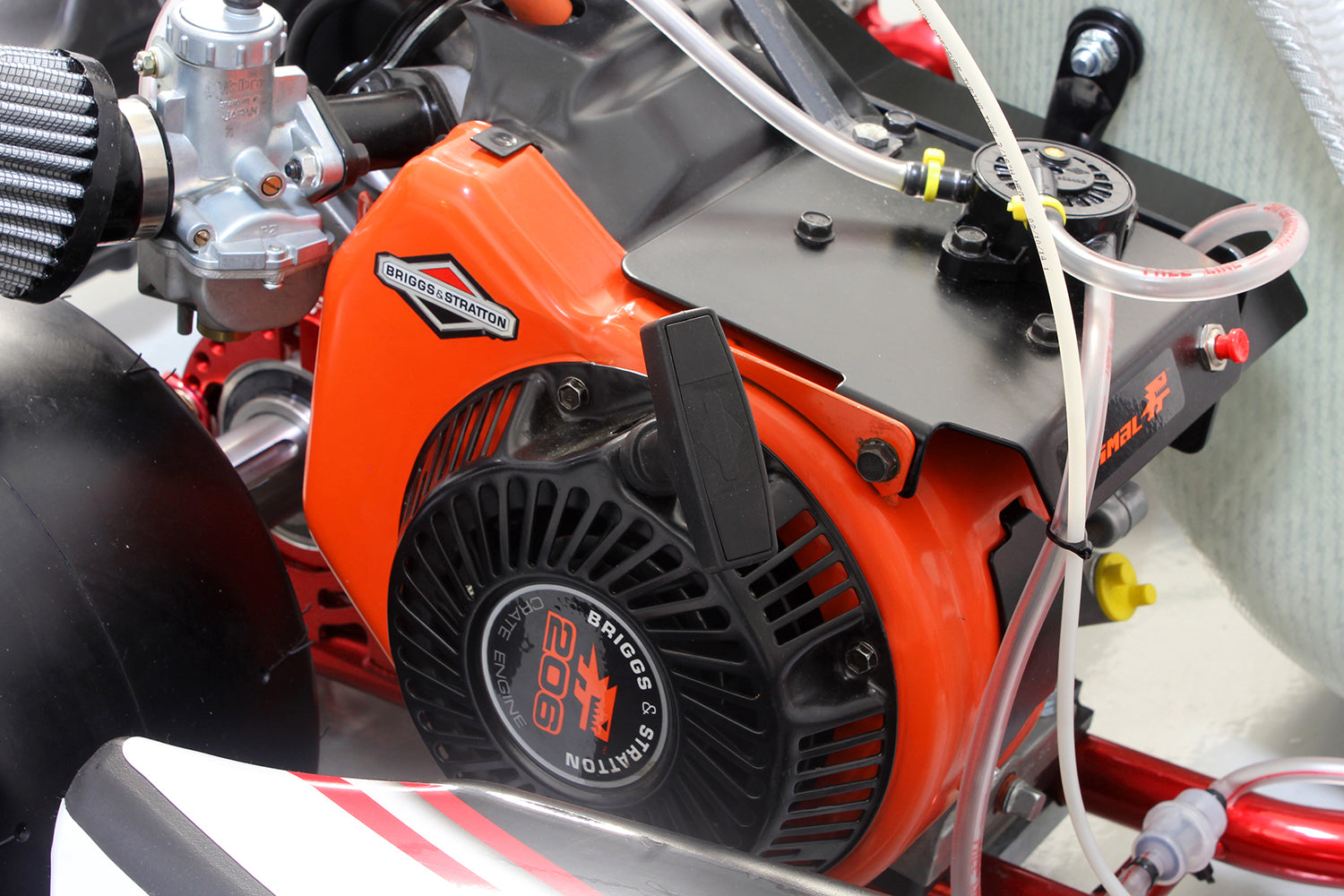

- Race ready, complete with Briggs LO206 and Hoosier R60B tires (installed)
Standard Equipment/Features

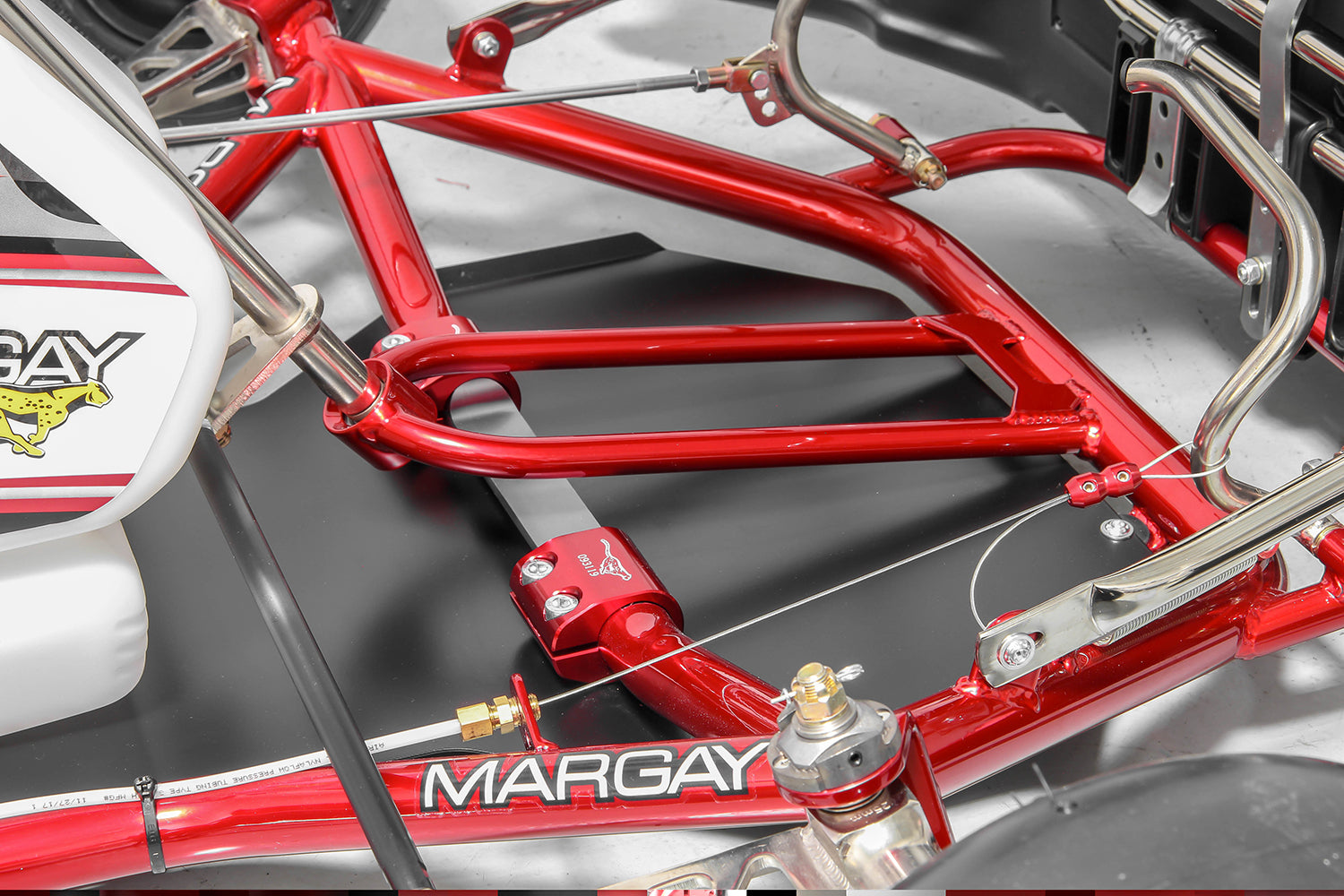

Chassis
- 1.25" (32mm) & 1.125 (28mm) multi-alloy construction
- 41.25" wheelbase
- 10° KPI, 15° caster, adjustable
- Adjustable ackerman
- Adjustable front & rear ride height
- Billet fairing mount/toe lock
- Sniper SA1 linear caster/camber adjusters

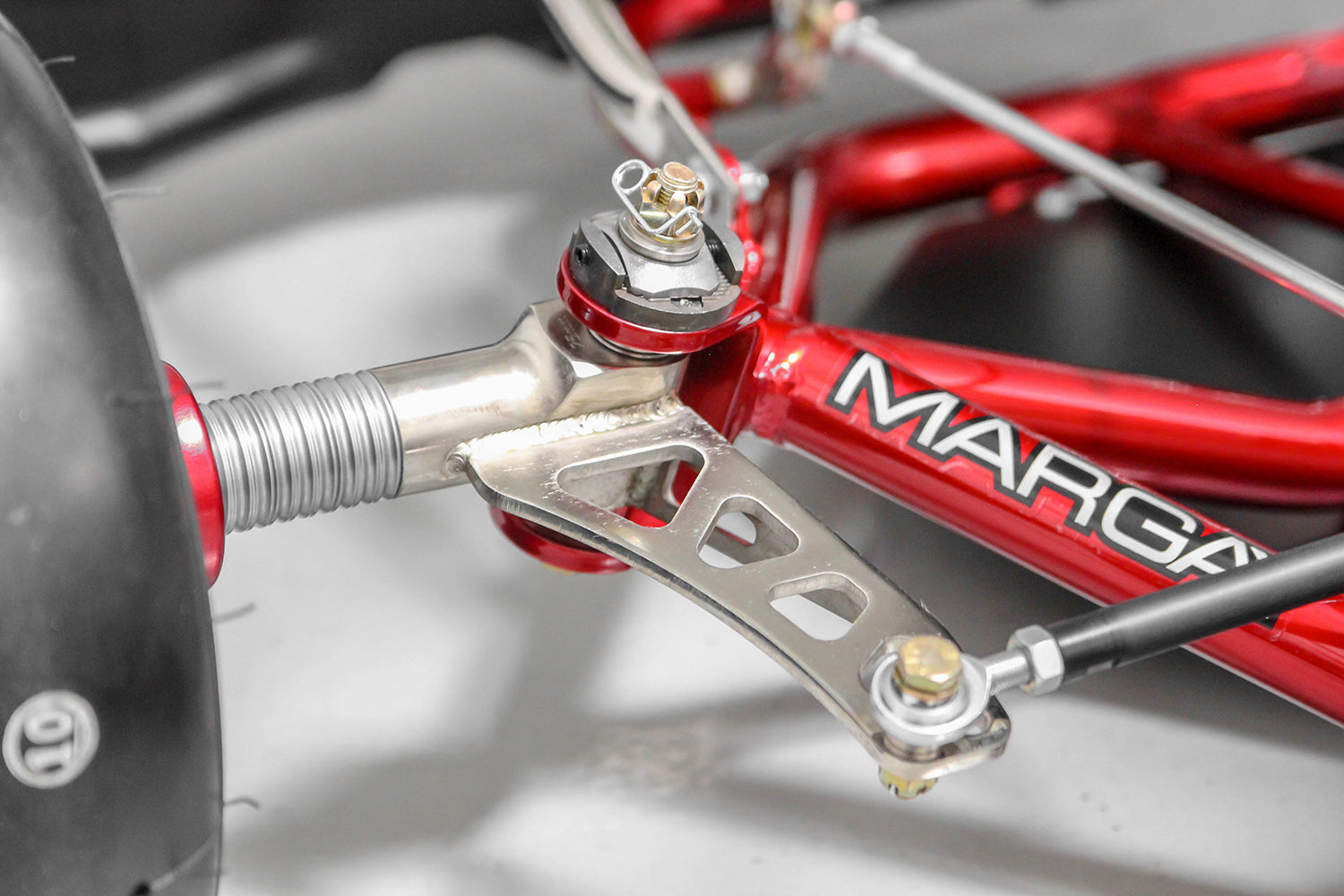

- Heat-treated billet 25mm spindles
- 25mm x 95mm euro mount front hubs, billet aluminum
- 40mm rear axle, 2 bearing, adjustable
- 40mm x 65mm euro mount rear hubs, billet aluminum
- 40mm aluminum sprocket hub
- Billet adjustable front torsion
- Billet chain adjuster

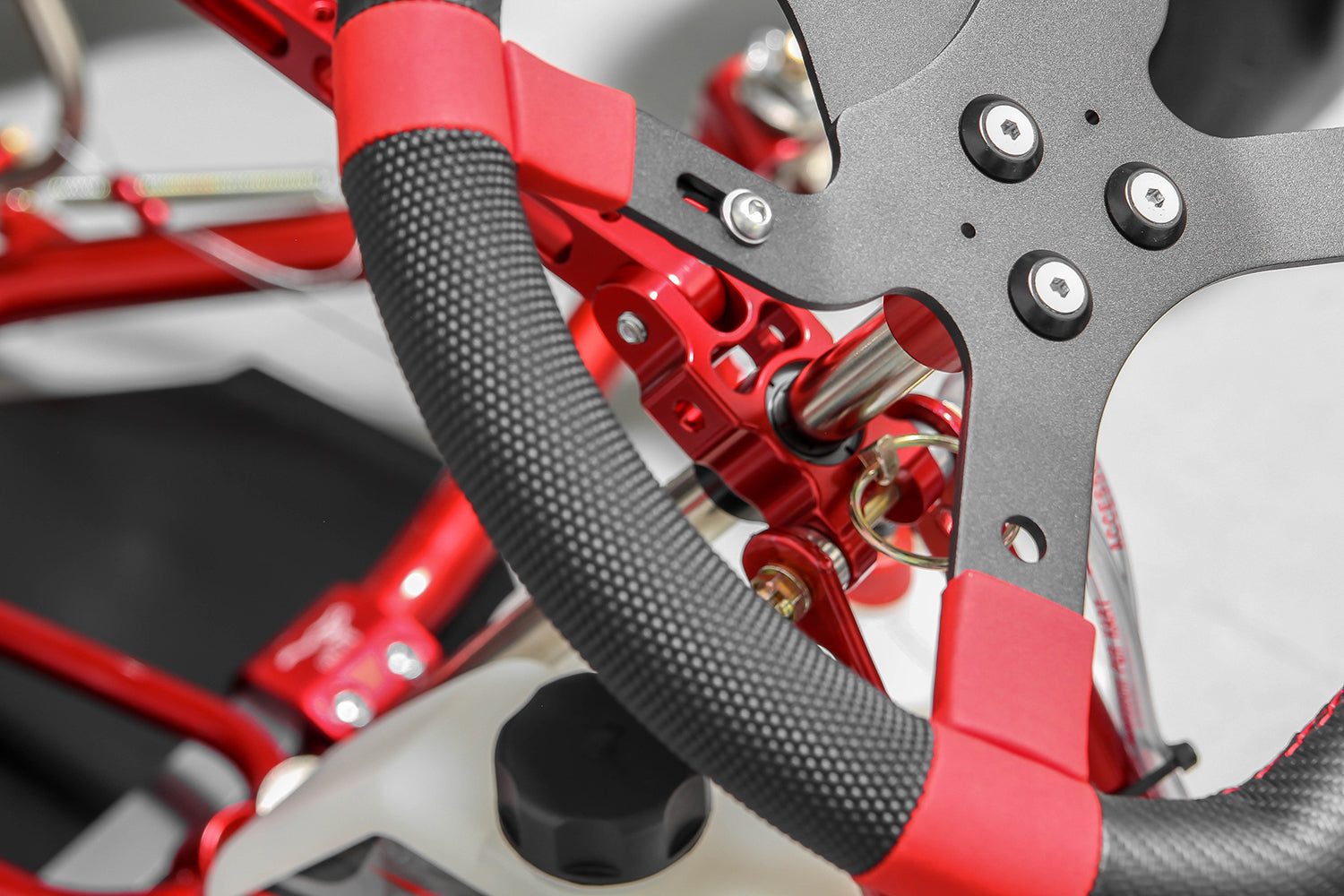

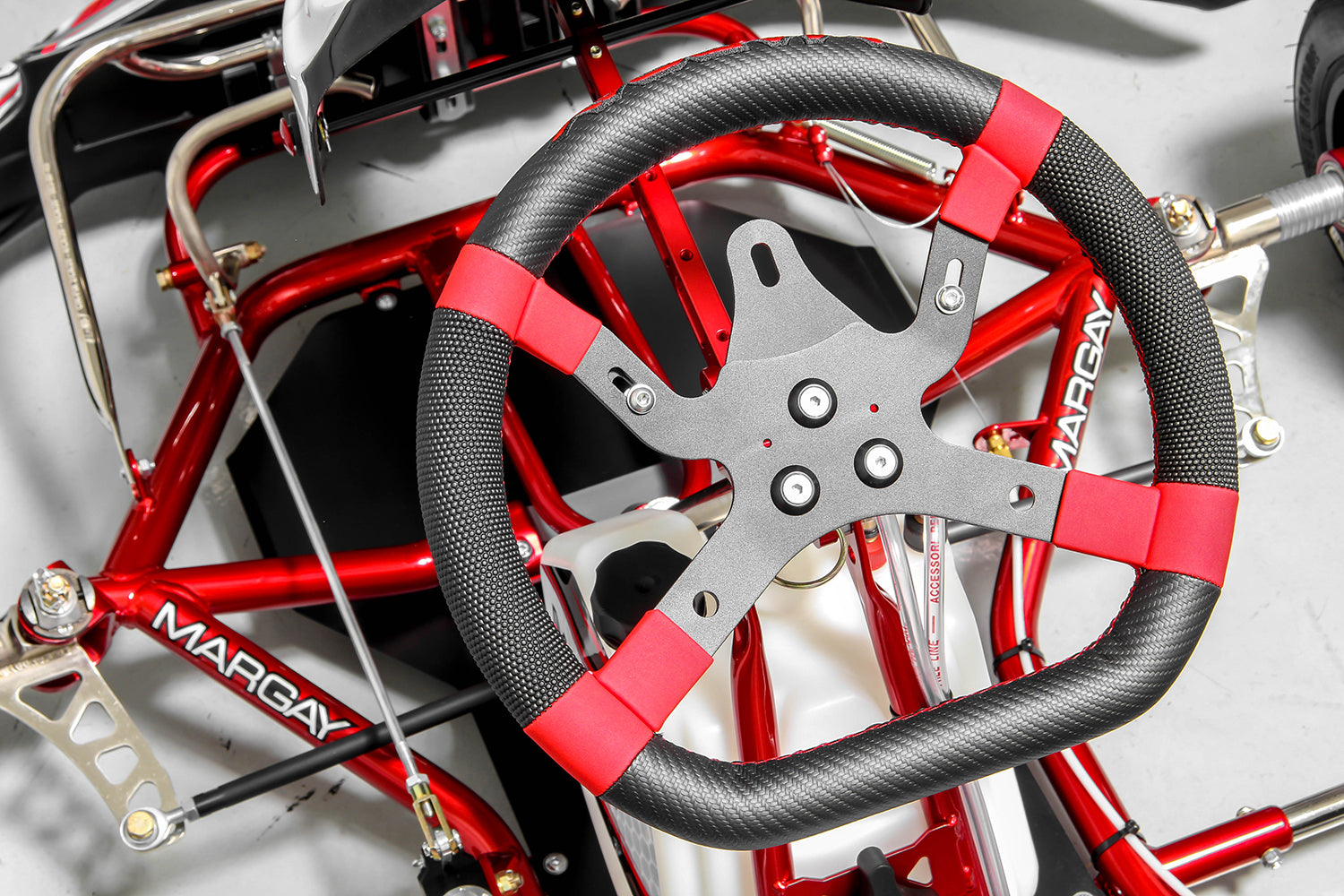

- Margay M8 Steering Wheel
- 8.5L liter fuel tank with integral pick-up & vent
Bodywork
- KG '506/Evo-Stilo' lightweight bodywork; black or red
- KG 'RS3' adjustable full width rear bumper
- Margay factory decal kit

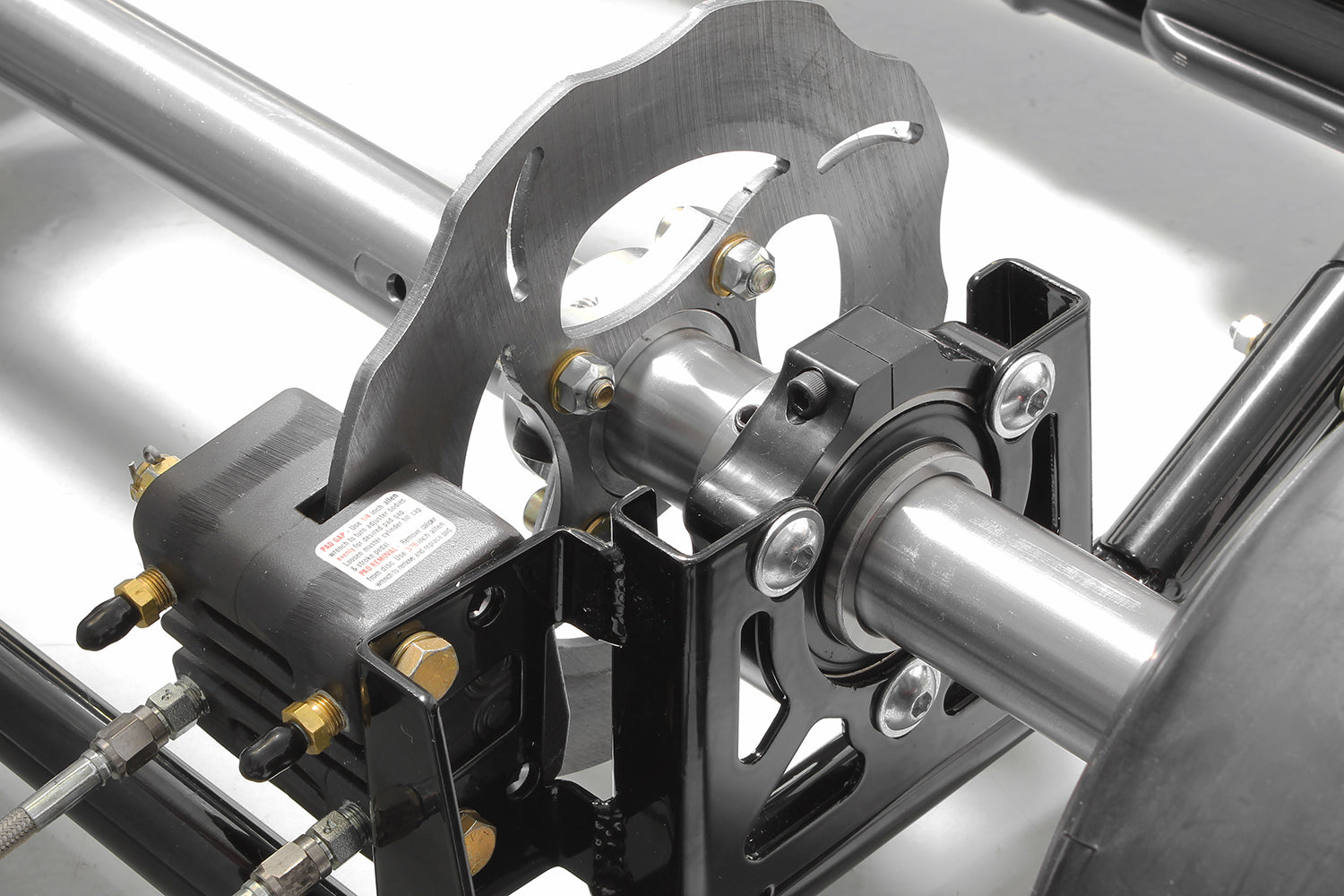

Brakes
- MCP 2 piston caliper - 'no shim' gap adjustment
- MCP master cylinder
- 200mm 'Wave' rotor
- Braided stainless brake lines
Seat

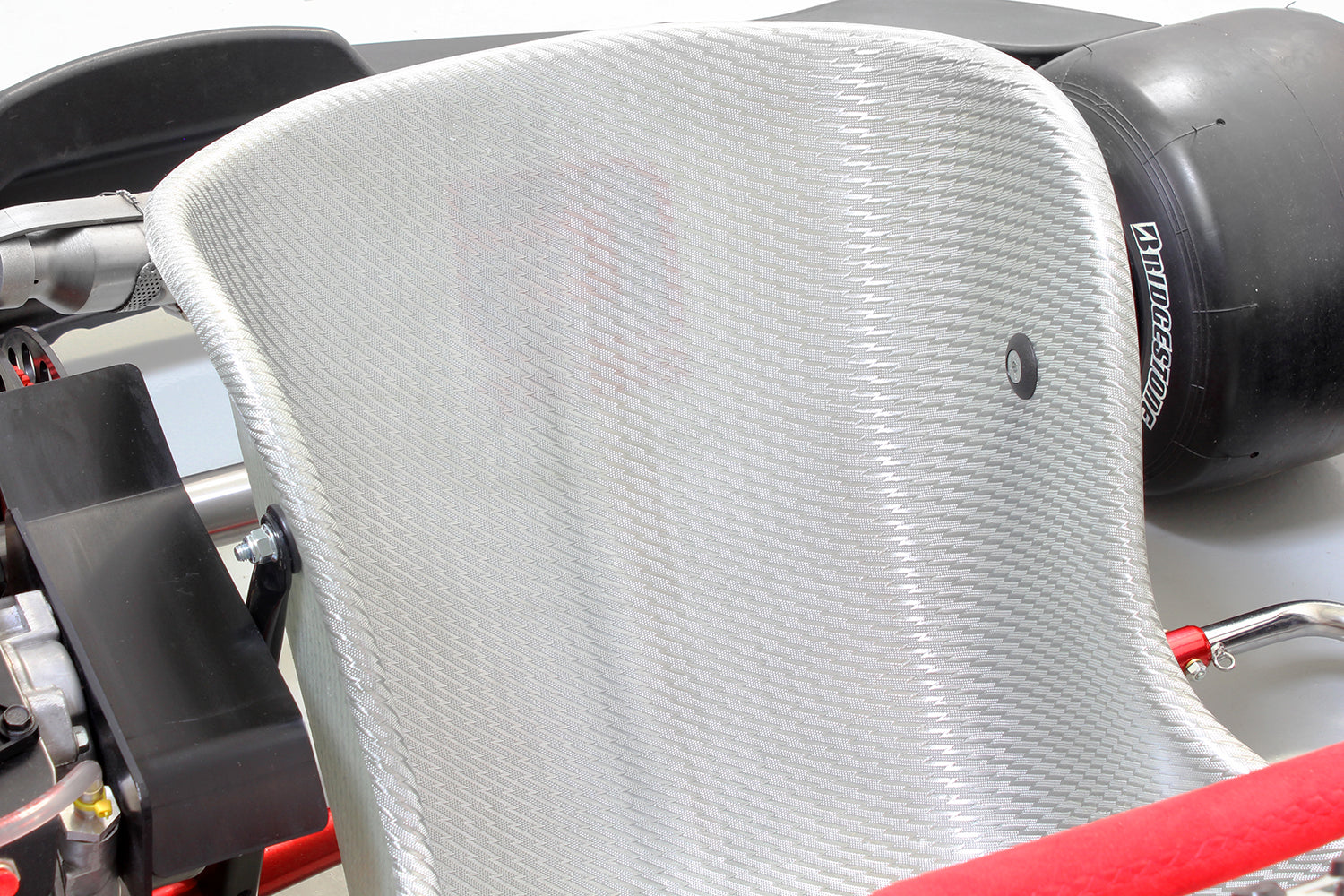

- G-Seat ES1 fiberglass shell seat
- Adjustable lower mounts
- Fixed position upper mounts
Wheels
- TruSpeed Magnesium front and rear wheels
