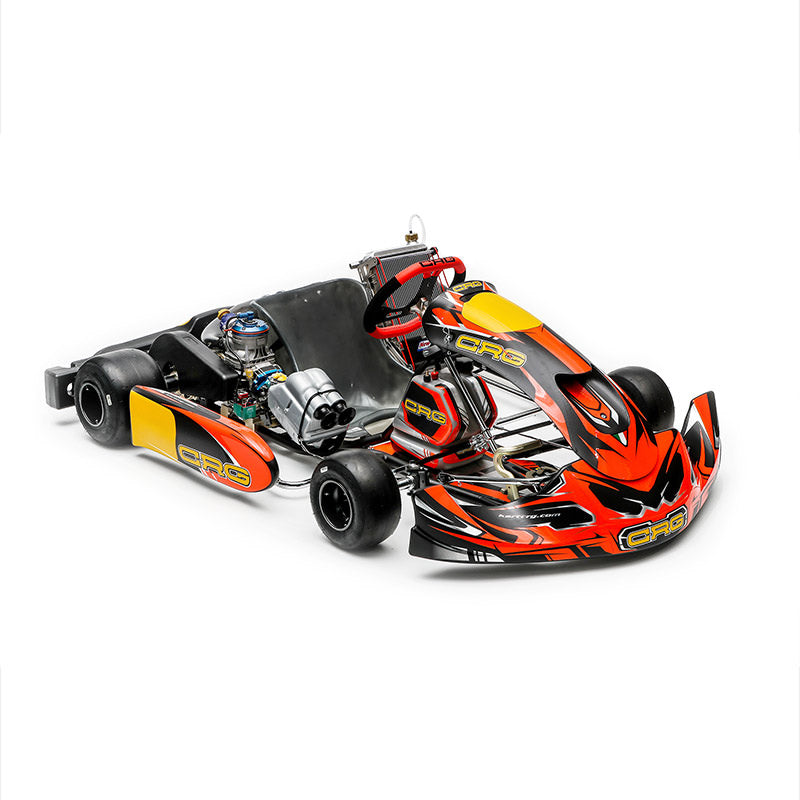

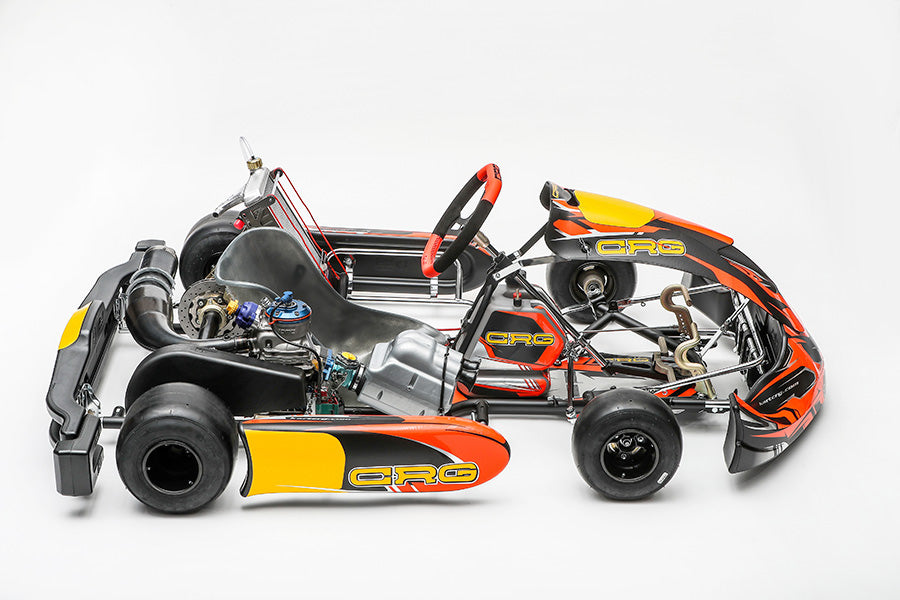

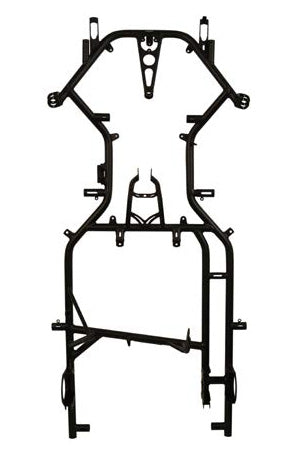

The KT5 chassis is part of the Premier CRG line. The KT5 chassis adopts a body with ø 30 Chromemoly tubes taking up the geometries of the KT2 model, but the front part of the body (from spindle to spindle) is made with 32mm tube. On the KT5 chassis it is possible to adjust both the rear axle and the stub axle settings; moreover, on the front side it is easy to set up the caster and the camber thanks to the exclusive Sniper caster system.
The KT5 chassis is equipped with the traditional VEN 11 brake system.
The chassis comes complete with the new KG 507-508 fairings characterized by refined aerodynamics and reduced weight. The sticker kit is also new.
Standard Features:
- 30mm/32mm frame
- Wheel Base: 1.042
- Rear Width: 635mm
- Front Width: 728mm
- Axle: 50mm
- Rear Bearings: 3

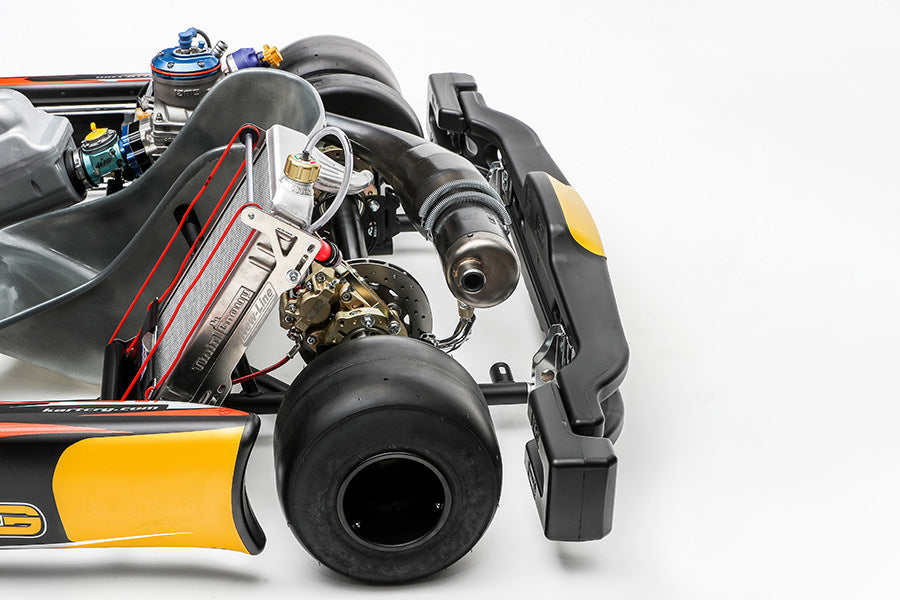

- Brakes: VEN11 cast iron self-adjusting brake system
- Vented Brake Rotors
- Floating Rotors
- Braided brake lines

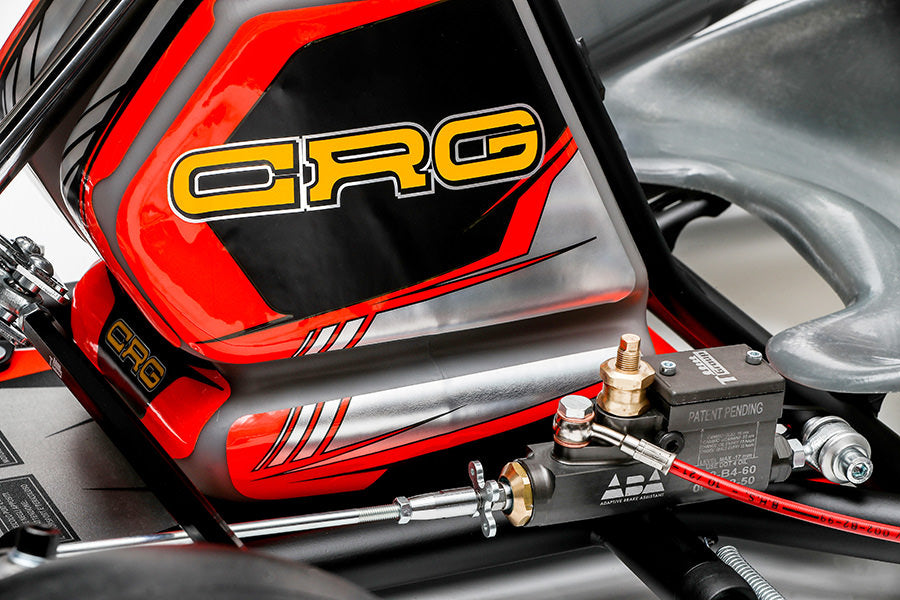

- Grey Quick release fuel tank 8,5 lt.

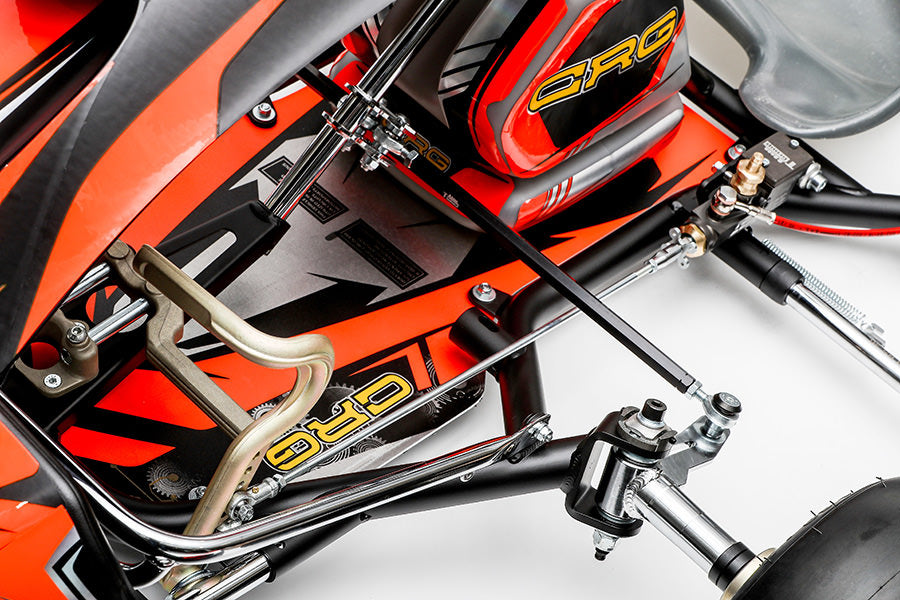

- Sniper Infinite Adjustable castor/camber
- 5″ 130/212 Magnesium wheels w/beadlocks
- Front and rear ride height adjustable
- Fiberglass Resin Seat

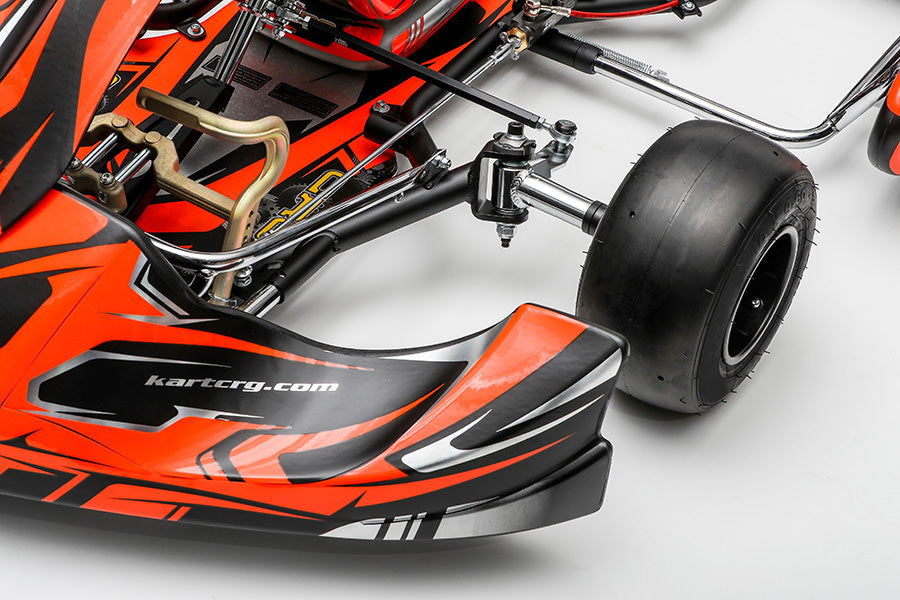

- KG 507/508 bodywork for great aerodynamics and good airflow to brakes and radiator.
- KG Rear Plastic Bumper

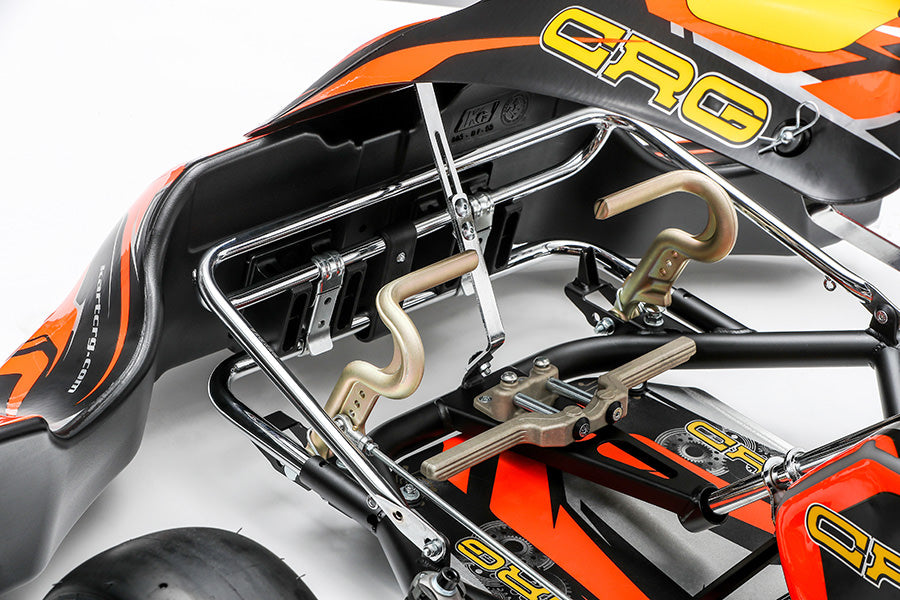

- Adjustable Feet Support Comp.
Special Design Features:
- Black anodized floor tray and axle Laser etched CRG logo on components
- Flat top, carbon look, embroidered steering wheel

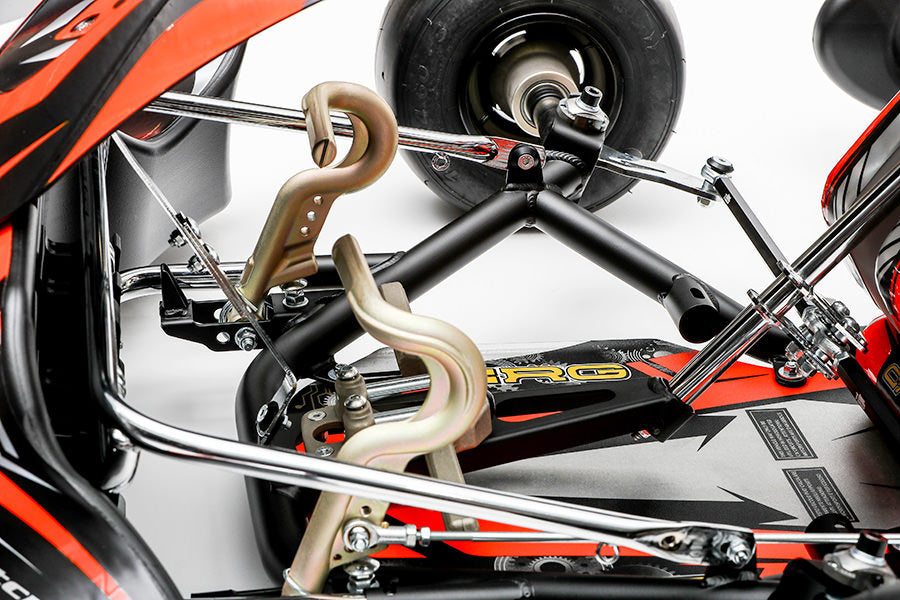

- Sliding front wheel hubs
- Factory CRG decal kit
- Adjustable Feet Support Complete Gold
- Floor tray decal kit
Optional Accessories
- Front and Rear Torsion Bars
- Duralcan Brakes (ceramic)
Motor Application:
100cc: X30, Rotax, ICA, JICA, HPV, TAG, Yamaha

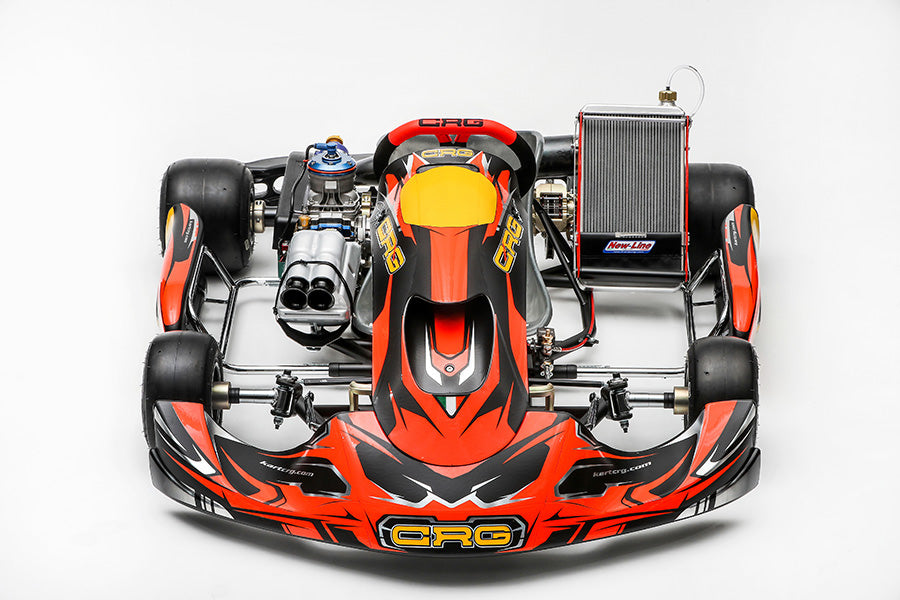

Note: Engine, Tires, and accessories sold separately. Image is for illustration purposes only.
