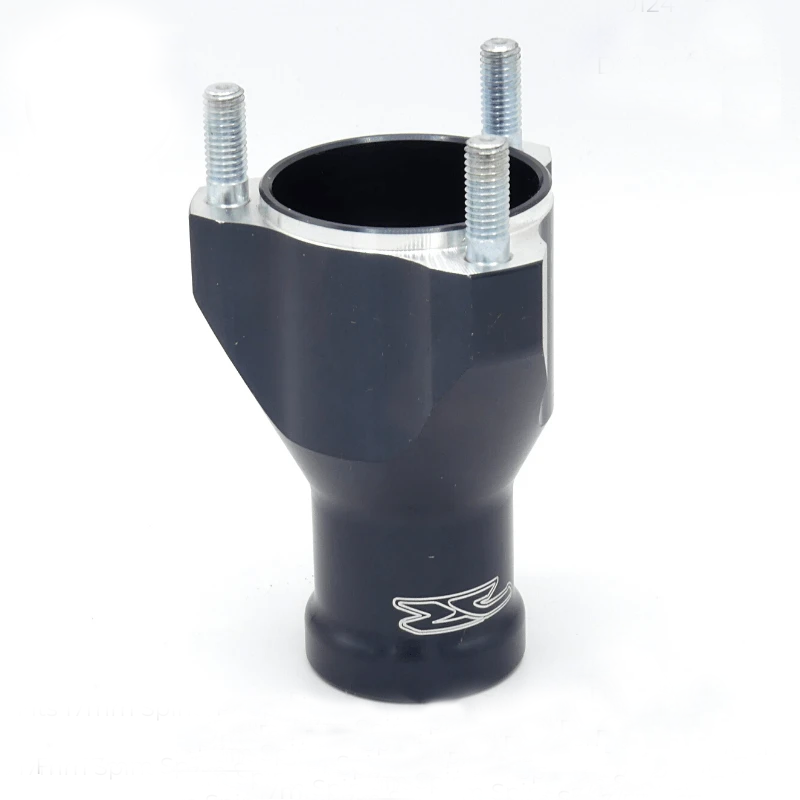

DR Kart 17mm Aluminum Front Hubs - image 1

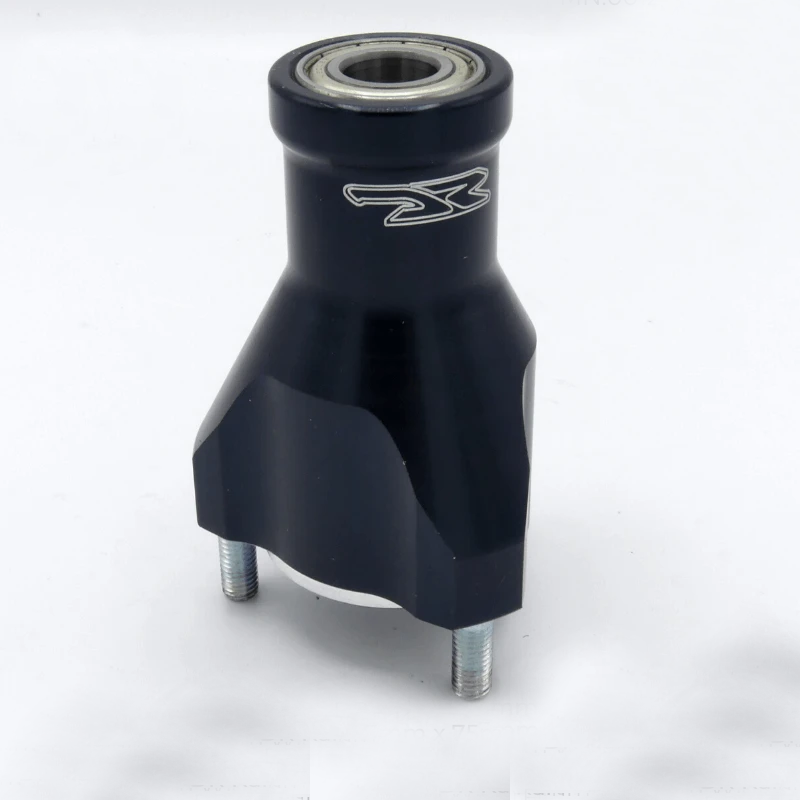

DR Kart 17mm Aluminum Front Hubs - image 2

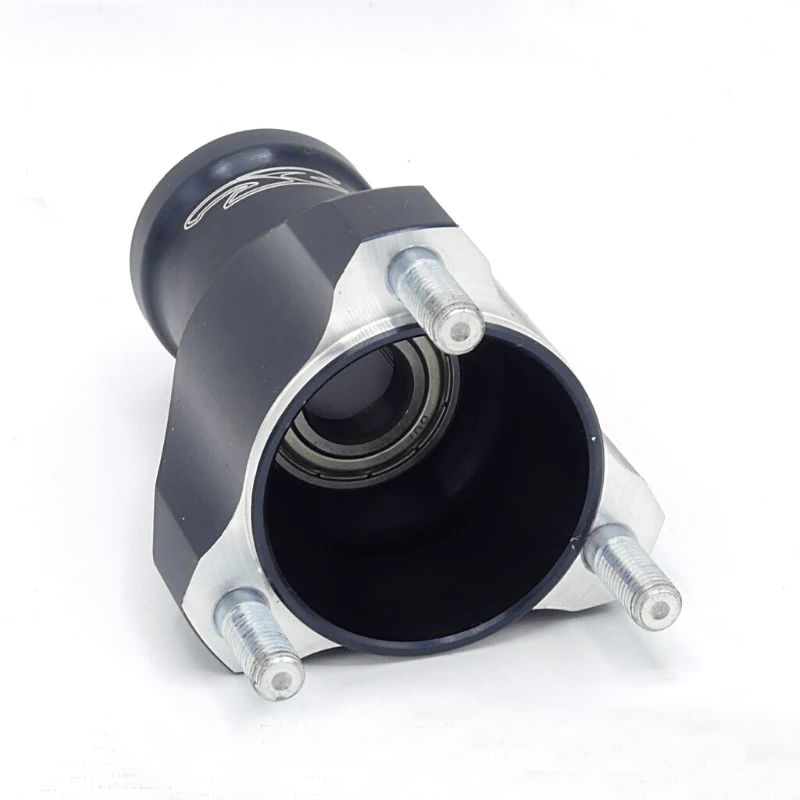

DR Kart 17mm Aluminum Front Hubs - image 3

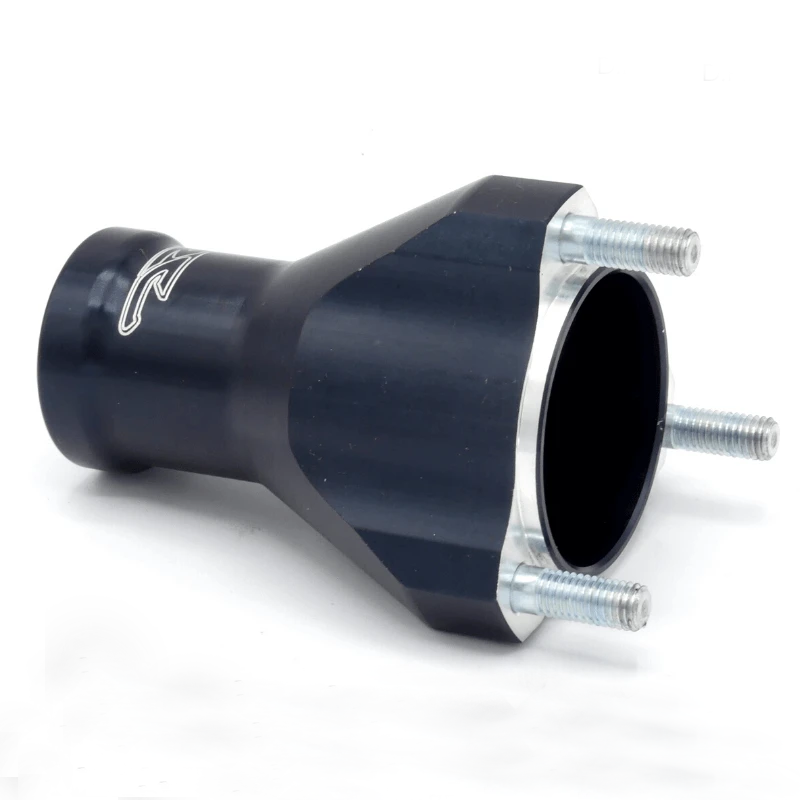

DR Kart 17mm Aluminum Front Hubs - image 4

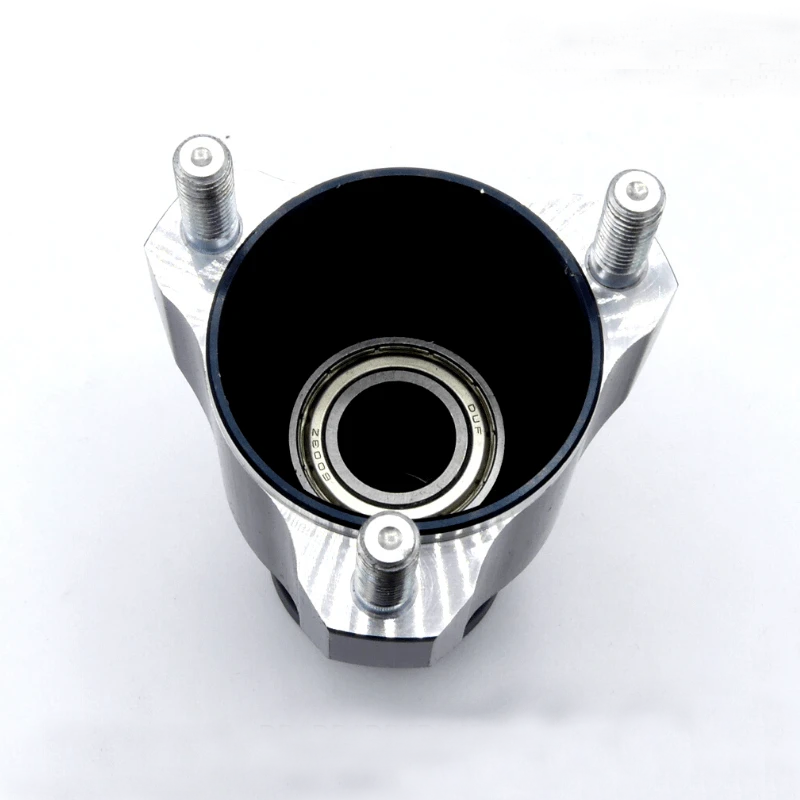

DR Kart 17mm Aluminum Front Hubs - image 5

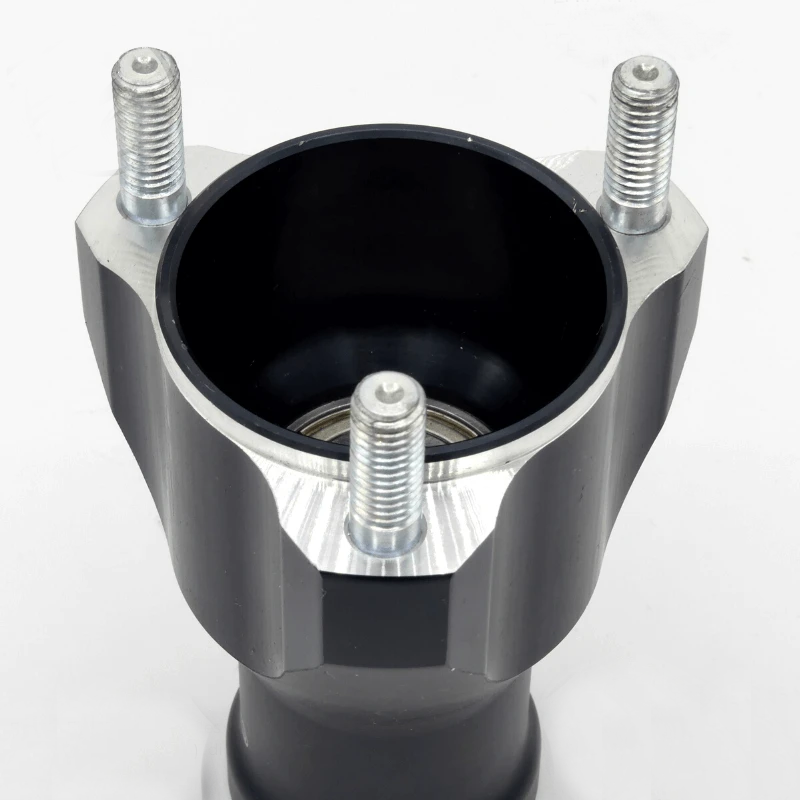

DR Kart 17mm Aluminum Front Hubs - image 6

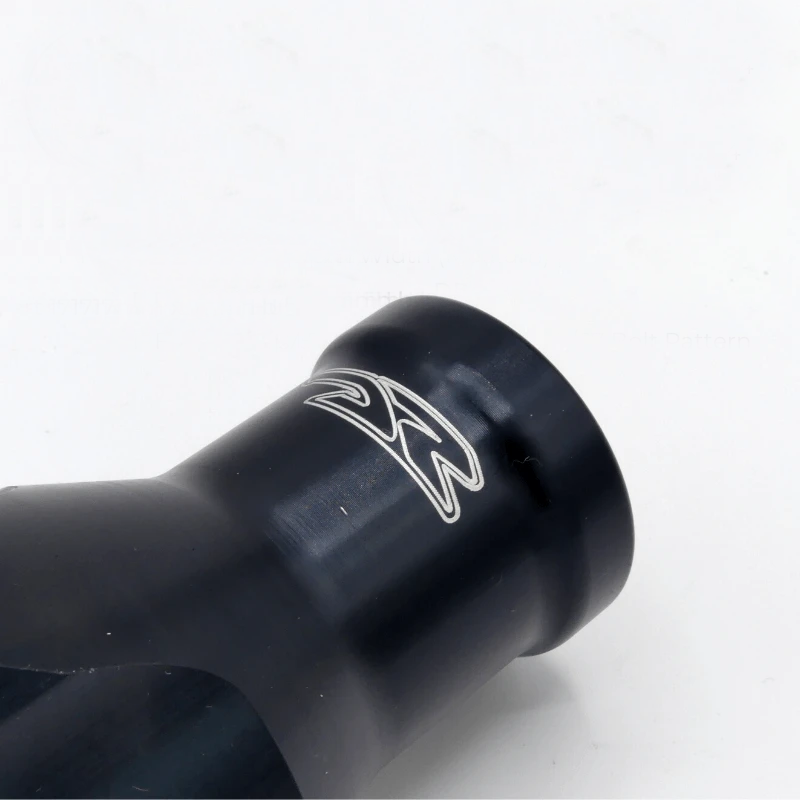

DR Kart 17mm Aluminum Front Hubs - image 7

DR Kart 17mm Aluminum Front Hubs

Sale price$105.00 CAD

Shipping calculated at checkout

Ships in 1-3 days
Hub Length:

Hub Length

Quantity:
Pickup available at Canada Warehouse Usually ready in 2-4 days

DR Kart 17mm Aluminum Front Hubs

Short (50mm)

Canada Warehouse

Pickup available, usually ready in 2-4 days

357 Entrepreneur Crescent
Ottawa ON K4B 1T8
Canada

+17204468860
Aluminum 17mm Front Wheel Hubs for DR Kart. These hubs are perfect for DR Kart, CRG, CKR, and CRG-derived chassis that utilize a 17mm front spindle. Made from aluminum, the hubs found here utilize a the over-size 3/67 bolt pattern to fit DR Kart and CRG 3/67 front wheels.

Overview

Now fairly rare, 17mm front spindle systems on full-size karts were the call for manufacture for DR Kart at the time these hubs were widely used on full-size chassis. Nowadays, 17mm front spindles are primarily found only on Kid Kart and Cadet / Mini chassis.

Designed to fit 17mm spindles, these hubs also feature a milled aluminum face for mounting the kart wheel, with a 3/67 bolt pattern. Note that this bolt pattern is fairly unique in karts, and is only found on select DR Kart, CRG, CKR, and CRG- Derived steering / wheel components worldwide.

The hubs are available in short (50mm), medium (75mm) and long (95mm) lengths. Use a 75mm hub in low-grip or 'average' track conditions. The 95mm hubs are great for rain conditions or times when increased front grip is necessary.

Note: This item can vary in available quantity in our warehouse, due to its unique application. Contact us prior to ordering if you want to check on availability!
