Odenthal Universal Mounts

  • Sale
  • Regular price $43.00
Shipping calculated at checkout.


Universal mounts by Odenthal Racing Products. From Airbox mounting to exhaust systems for racing go karts, Odenthal has a solution for you! A variety of sizes, cradles, accessories, and more makes up the Odenthal line of universal mounts.

Overview

The universal mounting system by Odenthal can be configured in so many different ways, it's rather unfair to have so many options at your fingertips!

For airbox support systems, Odenthal offers the UNFR and UN20 line of clamps - each fits a traditional chassis tube (say 28-32mm tubes), or smaller chassis tube areas (16-25mm), respectively. Together, these clamps cover most mounting applications for both your intake system or exhaust system for both European or American racing go karts.

In addition, Odenthal offers complete mounting kits with cradles to hold your airbox, exhaust, or individual components to build upon an existing Odenthal clamp such as angle brackets, springs, or cradles.

Selecting the Right Option for Your Kart

Selecting the right mounting option for your kart can be a challenge. Fortunately, our team at Point Karting has some recommendations for you!

  • First, determine what type of application you are working to solve. Are you supporting an exhaust pipe, or an airbox? Or, are you supporting something else? If you are considering supporting an intake or something other than the exhaust, consider the UNFR line of clamps to start with. Otherwise, the UN20 line of clamps is a great line of clamps to consider.
  • Next, do you need a cradle for your exhaust, or simply a point connection? An example of a cradled item could be a ROK airbox or exhaust pipe. By contrast, an airbox or exhaust with an attachment point such as the Mini ROK airbox or a Rotax Exhaust Pipe might be something that can swing your decision on which kit to consider.

Once you have your main application selected, inspect the potential mounting area. If the logical place to support the airbox, exhaust, or accessory is from an area of normal chassis frame tubes, look at a clamp that fits 28, 30, or 32mm frame tubes. Otherwise, you'll want a clamp style that fits a smaller diameter tubing, such as the UN20 type of clamps and supports.

Each component or kit is sold separately. Questions? Reach out to us at Point Karting! We are happy to help you find the right support kit or clamp, every time.

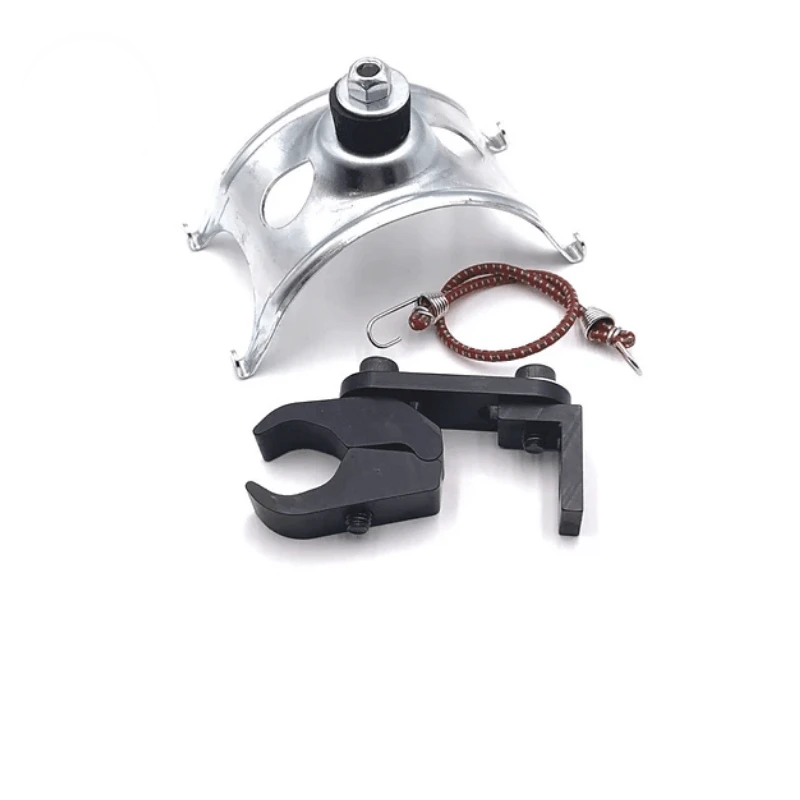

OD-UNABKIT complete airbox mounting kit
fits chassis tubes: 28/30/32mm
Includes: frame clamp, short arm, L-bracket, airbox cradle, bungee, hardware.

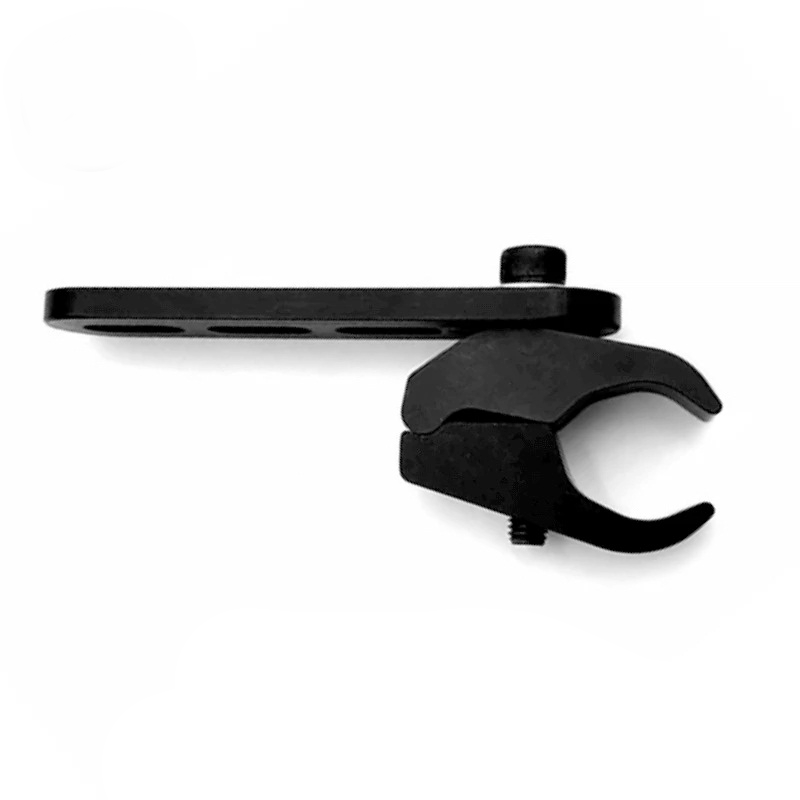

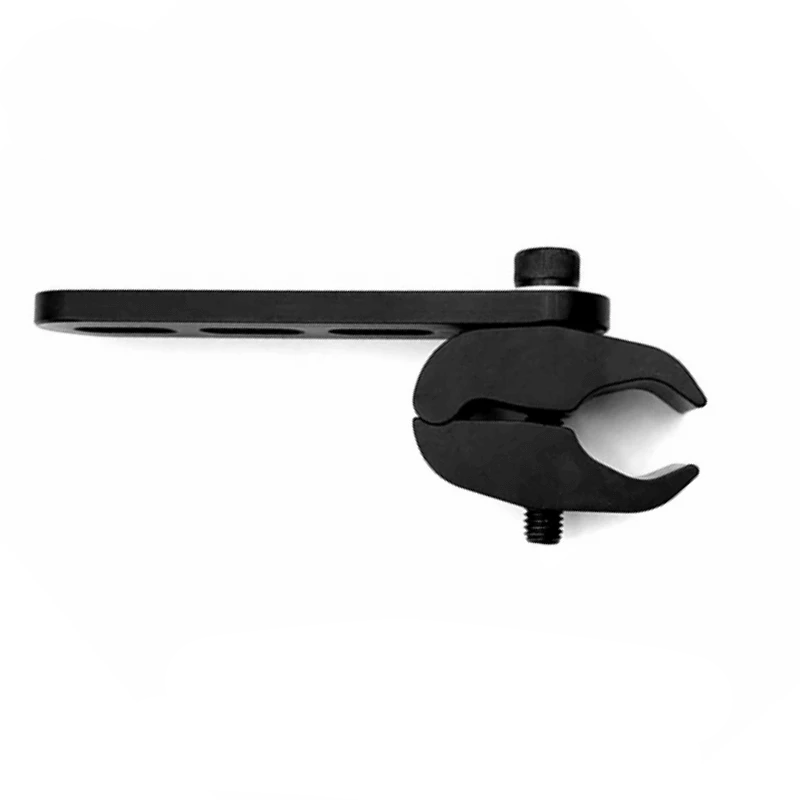

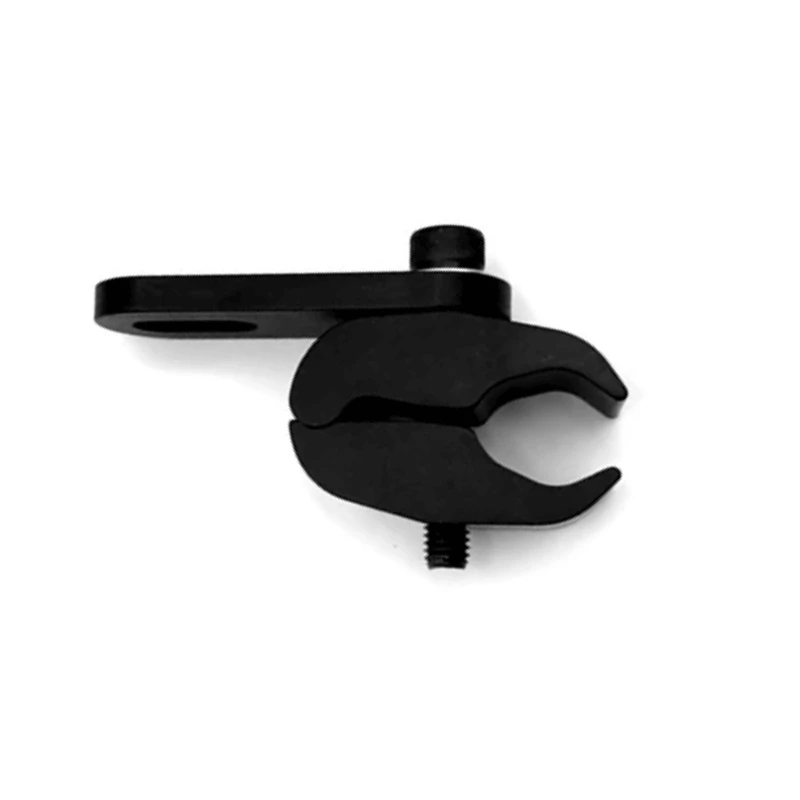

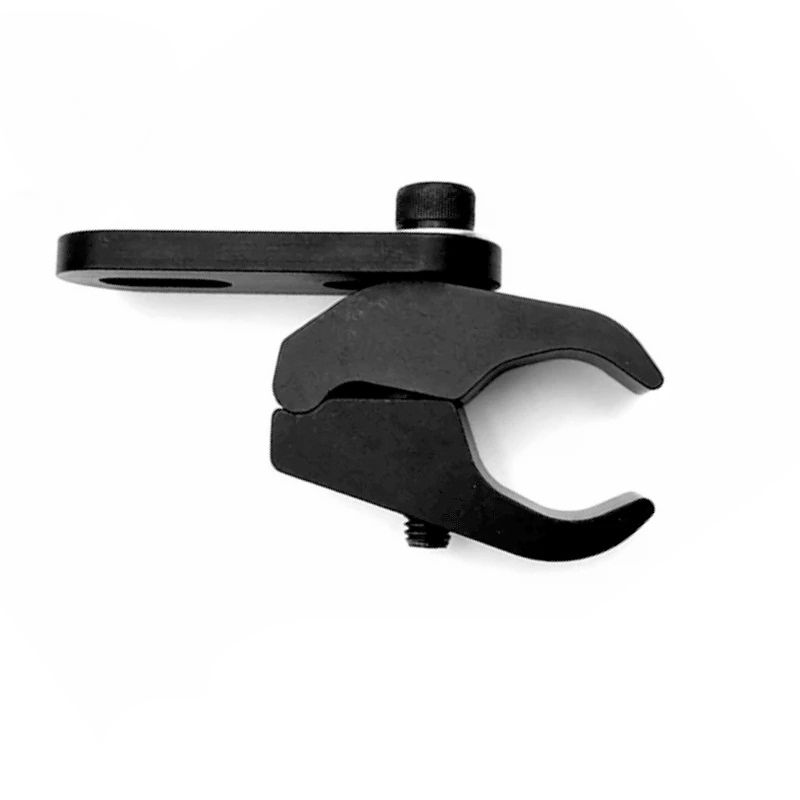

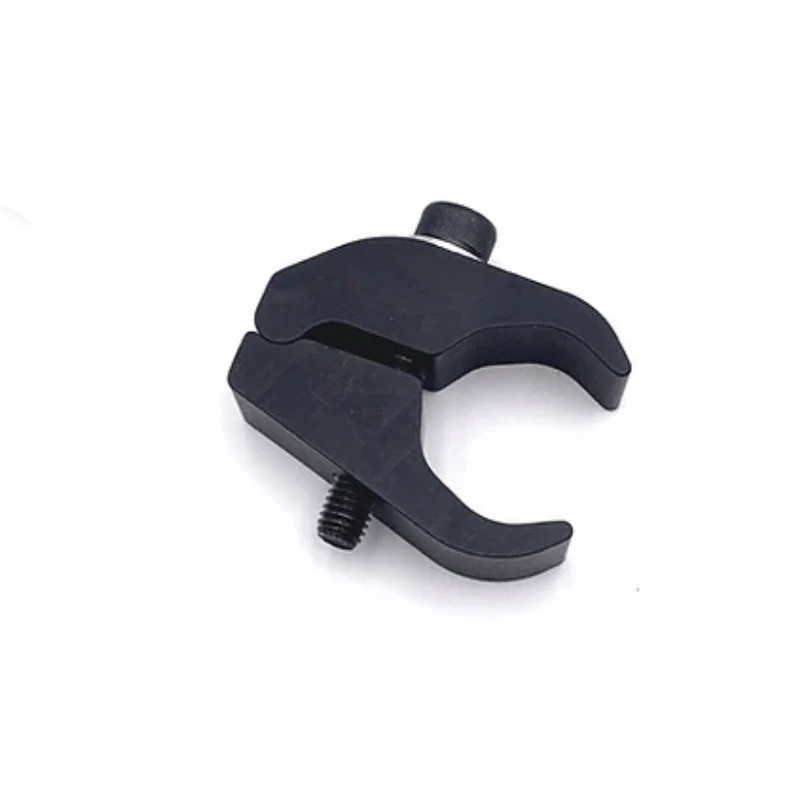

OD-UNFRSA Arm Length: 74.0mm
Fits Chassis  Tubes: 28/30/32mm

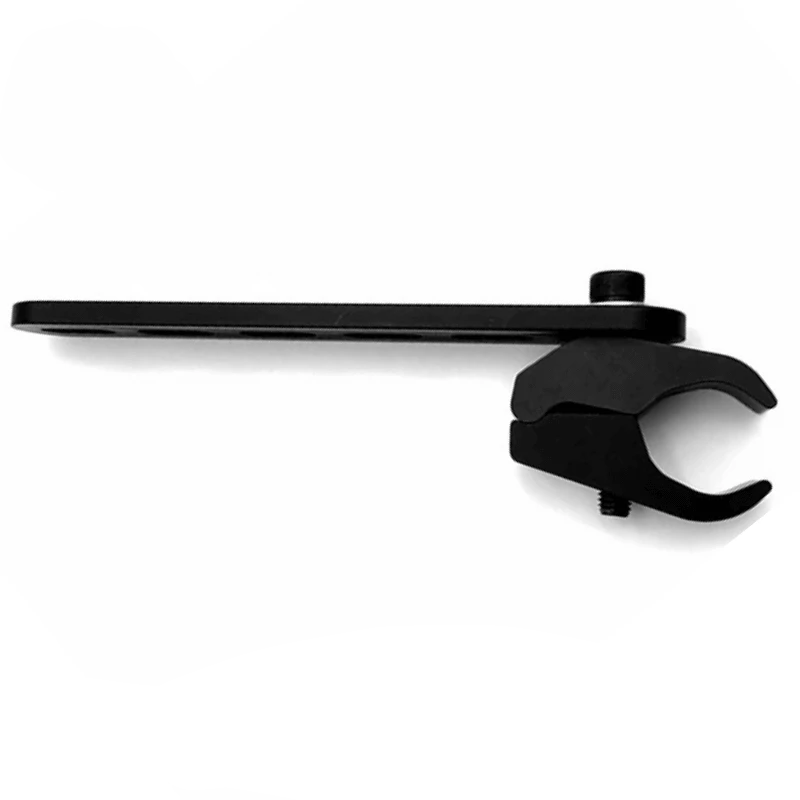

OD-UNFRA Arm Length: 112.0mm
Fits Chassis  Tubes: 28/30/32mm

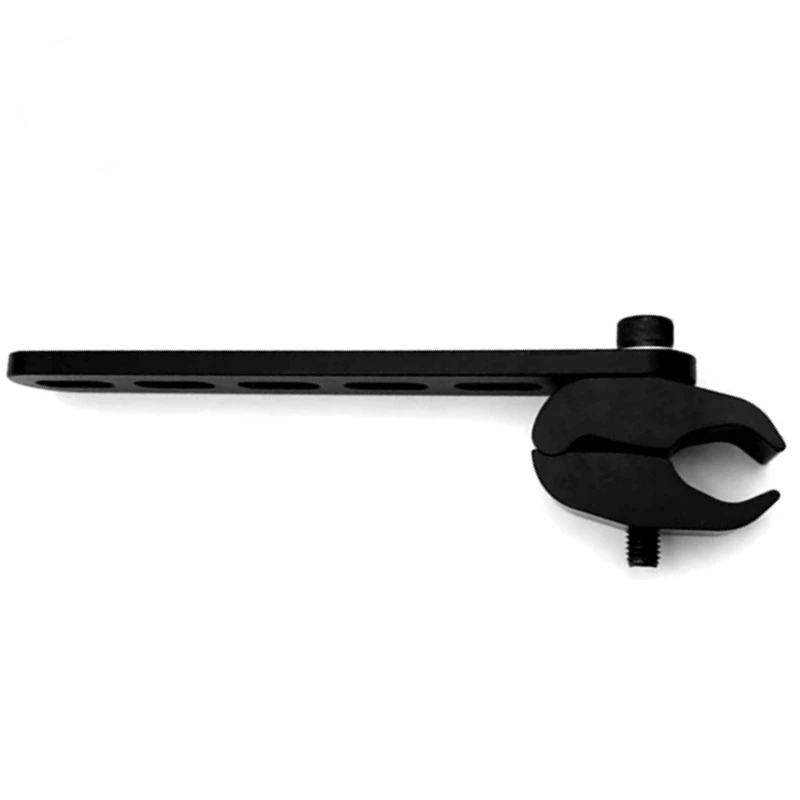

OD-UNFRLA Arm Length: 170.0mm
Fits Chassis  Tubes: 28/30/32mm

OD-UN20SA Arm Length: 170.0mm
Fits Chassis  Tubes: 16-25mm

OD-UN20MA Arm Length: 112.0mm
Fits Chassis  Tubes: 16-25mm

OD-UN20LA Arm Length: 170.0mm
Fits Chassis  Tubes: 16-25mm

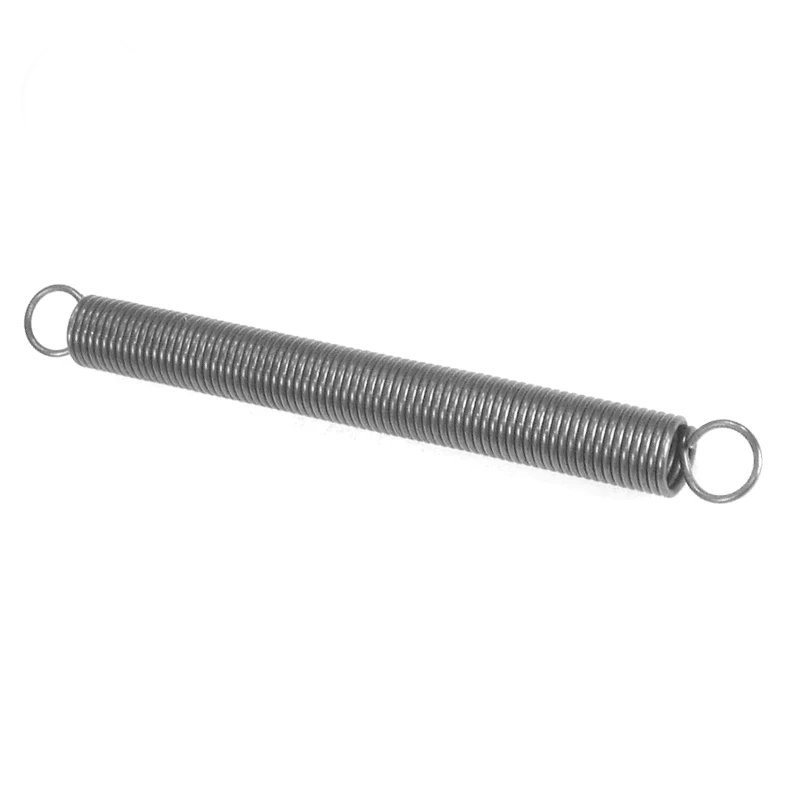

OD-UNSP spring for pipe mounts.

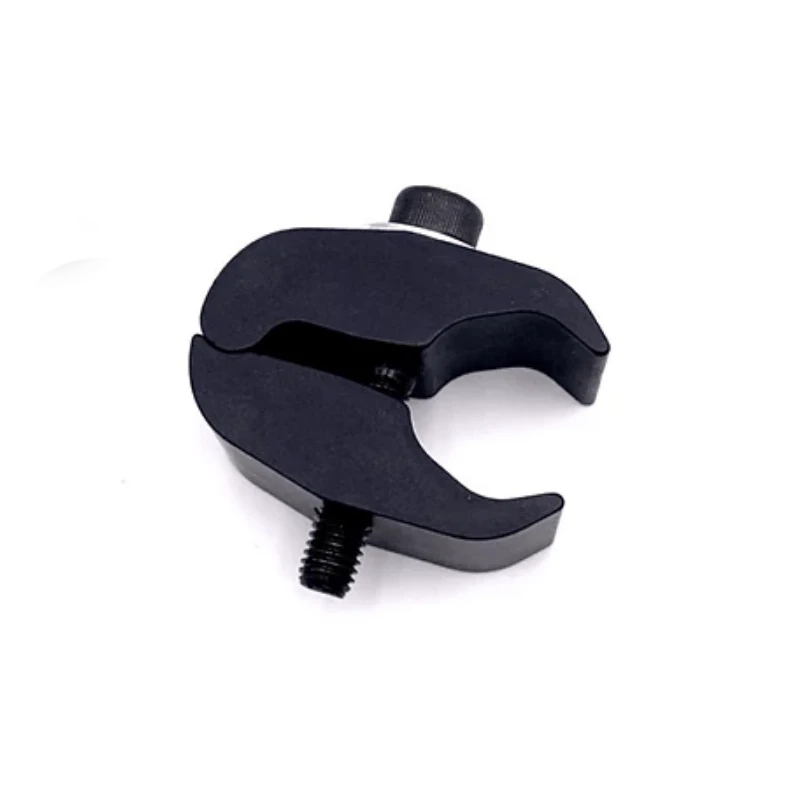

OD-UN20 fits chassis tubes: 16-25mm
OD-UNFR fits chassis tubes: 16-25mm

OD-UN20MAC complete exhaust pipe support kit
Fits chassis tubes: 16-25mm

Includes: frame clamp, medium arm, exhaust cradle springs, exhaust cradle, mounting hardware.

OD-UNABC air box cradle assembly
Includes: air box cradle, bungee, mounting hardware

OD-UNLBR L-bracket for mounting air box, exhaust systems
Includes: M6 x 20mm bolt, M6 washer, L-bracket

OD-UNGROM rubber grommet for air box, exhaust cradle assemblies

OD-UNPMC exhaust pipe mount cradle assembly
Includes: exhaust pipe cradle, mounting hardware, exhaust pipe springs.

OD-UNSA short arm for airbox, exhaust mounts-74.0mm

OD-UNMA medium arm for airbox, exhaust mounts-112.omm

OD-UNLA long arm for airbox, exhaust mounts-170.0mm

OD-MAXKIT exhaust support kit for rotax FR-125 engines
Includes: 2UNFR, UNMAX90, 2 UNMA, 4 UNGrom, mounting hardware
